X6 Remote Control Suspended Solar Panel Cleaning Robot
The X6 remote-controlled, suspended solar panel cleaning robot glides swiftly across photovoltaic panels, adapting to various terrains within a 50-degree angle (mountains, deserts, high-slope terrain, lakes, etc.). Compared to traditional cleaning equipment, it cleans a larger area, achieves a higher pass rate, and supports remote control, increasing cleaning efficiency by over 76%, setting a new benchmark for efficiency in the solar panel cleaning industry.
Price :
$2,753.00 – $3,478.00
| model |
Applicable solar panel size (MM)Roller brush length (MM)Machine weight (KG) excluding batteryRetail price (yuan) |
| X601 |
1640-1650164040￥18999 |
| X602 |
1990-2000200045￥19999 |
| X603 |
2268-2278227850￥20999 |
| X604 |
2370-2384238455￥21999 |
| X605 |
3310-33201640*260￥20999 |
| X606 |
4010-40202000*265￥21999 |
| X607 |
4566-45762278*270￥22999 |
| X608 |
4768-47882384*275￥23999 |
| custom made |
Other sizes can be customizedOther sizes can be customized-- |
| robot | |
| Power supply mode: |
lithium batteryTravel speed:≤15m/minCleaning Type:Dry cleaning / washing |
| Voltage capacity: |
48V20AHRemote control distance:100mWorking angle:≤50° |
| Battery weight: |
6.5KG/pieceLanding speed:230-250r/minPlane dislocation obstacle crossing:≤40mm |
| Battery life: |
6-8hRoller brush speed:300r/minLeft and right spacing:≤600mm(Use assistive devices) |
| Charging time: |
7-8hRoller brush motor power:400WLeft and right plates are misaligned:≤10mm |
| Operating temperature range: |
-20-60°CTravel motor power:200W*2 |
Product description
1. Why choose the XYT X6?
- 1 robot ≈ 2.4MW daily cleaning capacity = 2 operators

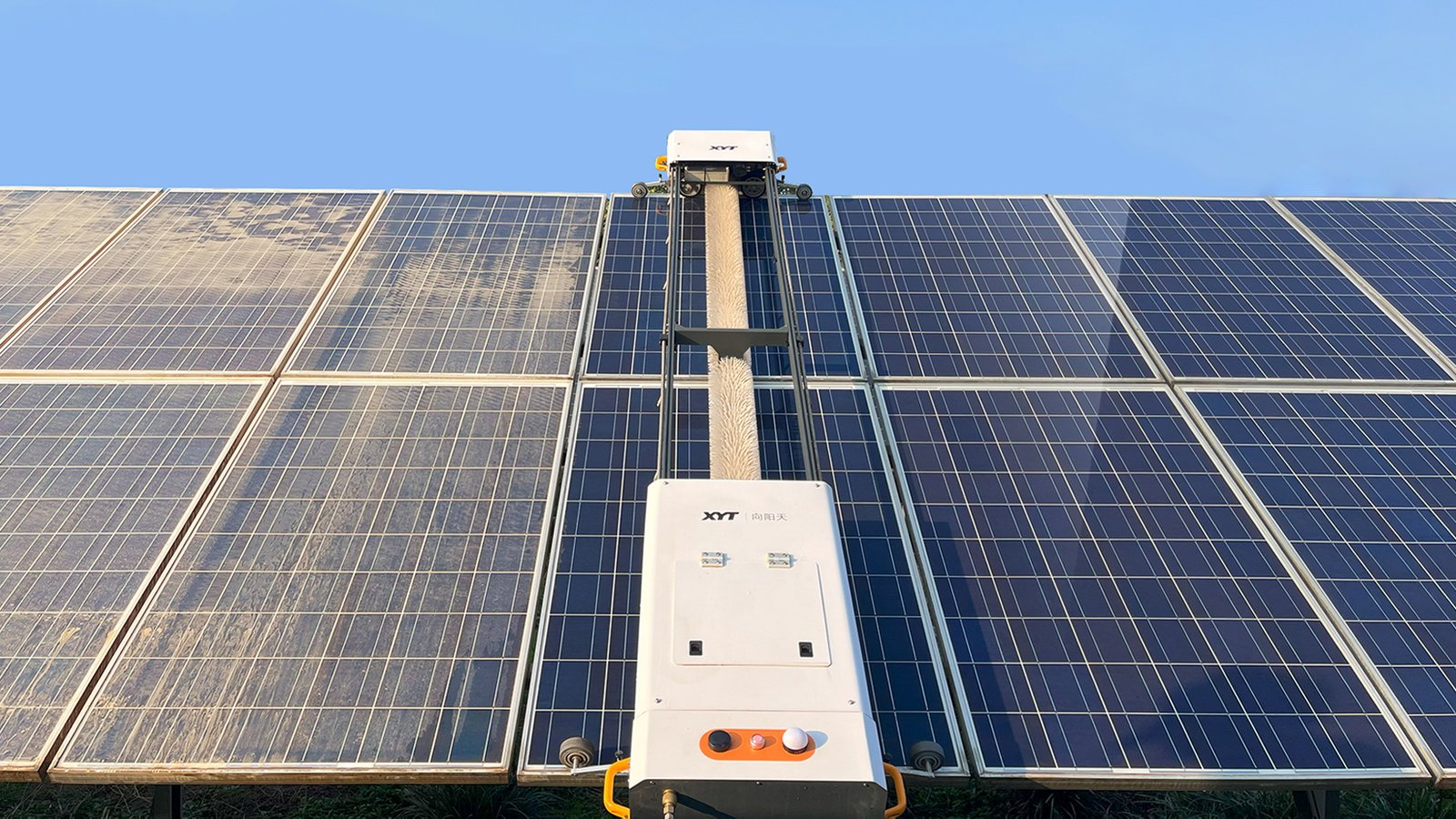

- Suspended above PV panels for rapid navigation, excellent terrain adaptability, and exceptional PV cleaning efficiency.
- Ideal for large areas, high angles, and high-pile power stations.
2. Why do you trust the XYT X6 for installation?
- Its three-stage modular design offers strong adaptability, significantly reducing procurement and maintenance costs.

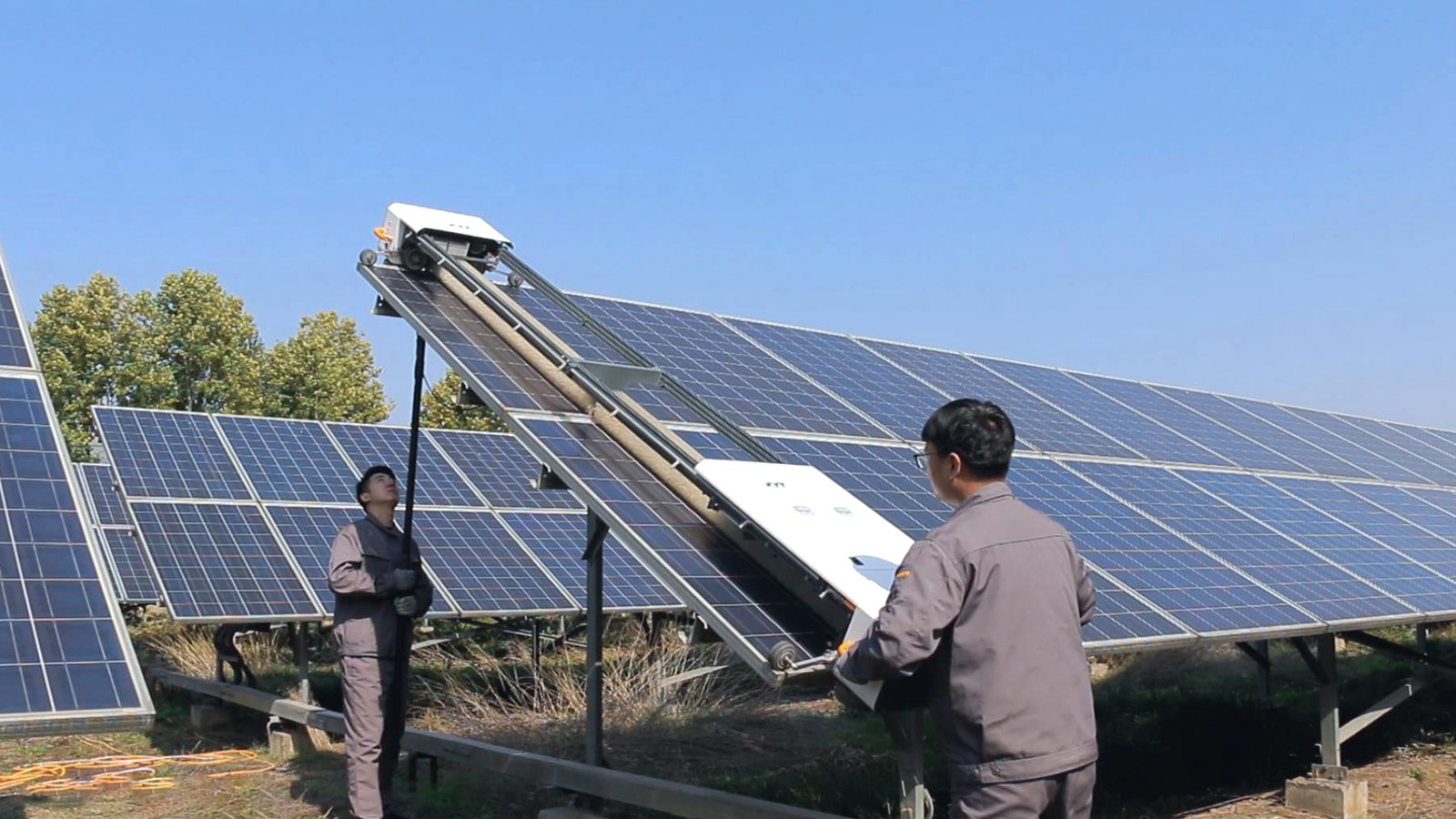

- It can be suspended from photovoltaic panels for operation, with an applicable tilt angle of up to 50°, providing excellent terrain adaptability.

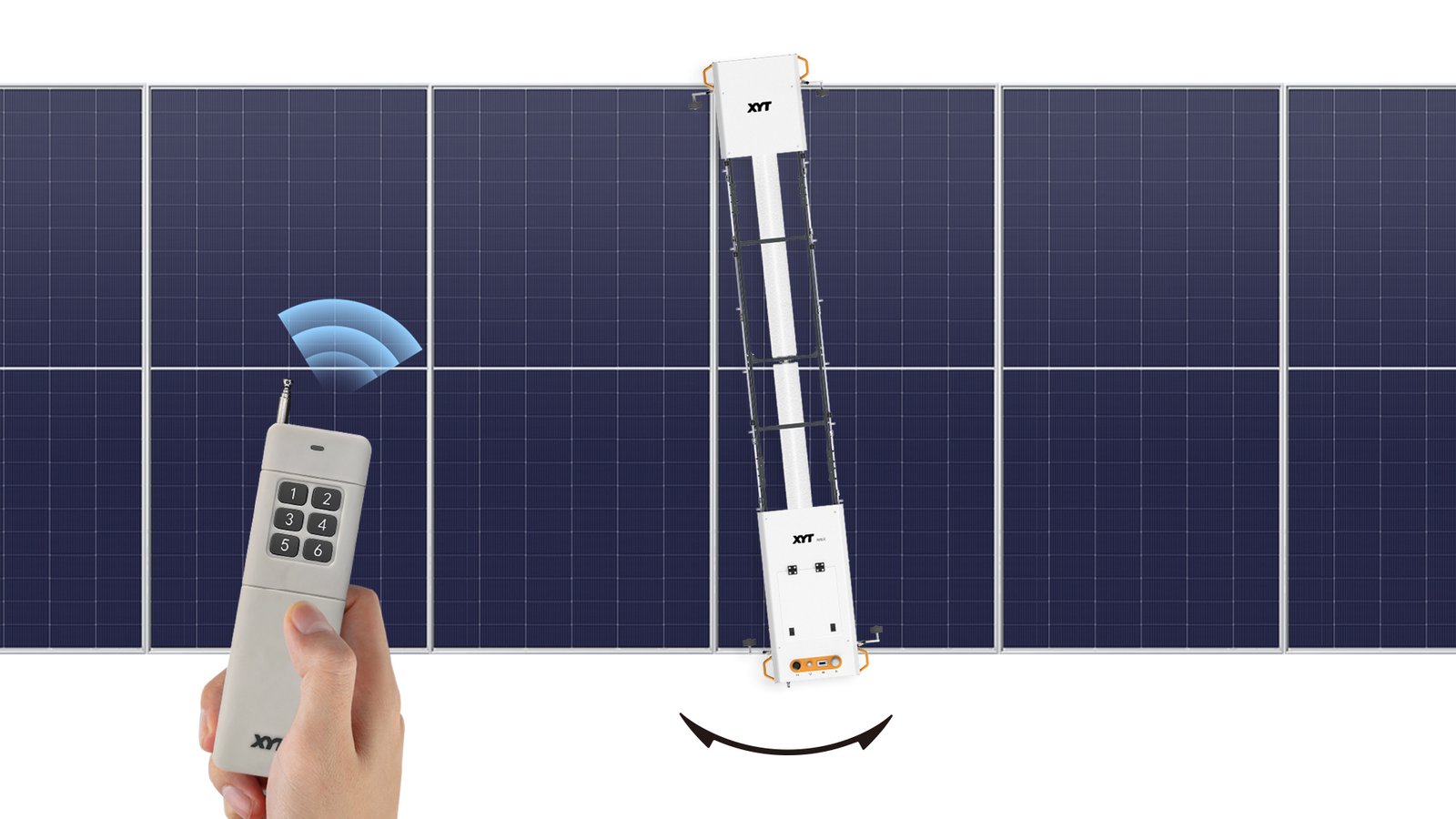

- Its remote-controlled active correction function allows it to autonomously navigate misaligned obstacles within 10mm, with a pass rate of up to 98%.
- Its cleaning efficiency is over 76% higher than traditional equipment, supporting continuous operation over large areas and at high angles.

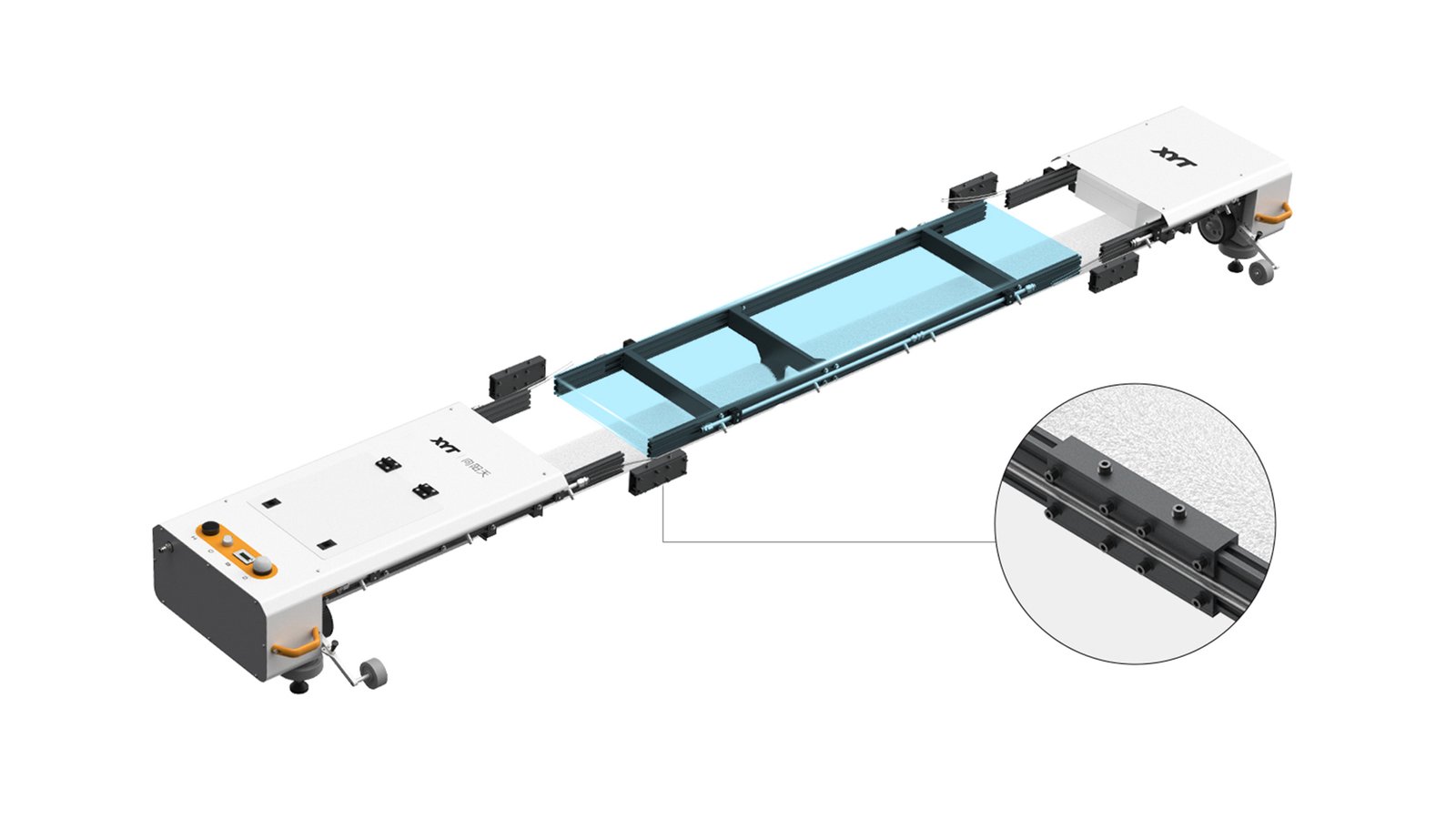

3. Modular Construction Enhances User Experience
- A three-section design (upper, middle, and lower) allows for flexible and convenient assembly and disassembly
- Optional middle section kits of varying lengths accommodate various PV panel sizes and facilitate replacement
- Modular components significantly reduce costs, allowing assembly within 20 minutes for easy transportation and maintenance
4. Efficiently handles complex terrain and array spacing
- Equipped with a retractable bridge system, it easily bridges array spacing up to 60cm
- Supports continuous operation, eliminating frequent handling and significantly improving operational efficiency
- Strong terrain adaptability, suitable for diverse scenarios such as mountainous areas and agricultural photovoltaic hybridization, achieving efficient cleaning in a single sweep
