X7 remote control crawler photovoltaic cleaning robot
The X7 remote-controlled crawler photovoltaic cleaning robot is a highly efficient cleaning solution tailored for the complex environments of photovoltaic power plants. It easily handles cleaning challenges that are difficult to reach manually or that telescopic mast equipment cannot effectively address. This product integrates advanced features such as an ultra-wide 1.35-meter cleaning path, automatic deviation correction, and intelligent path planning, designed to significantly improve the cleaning efficiency and automation level of photovoltaic power plants, enabling worry-free and labor-saving intelligent operation and maintenance.
Price :
$2,129.00 – $2,914.00
| X7 robot | |
| Operating voltage: |
48VDrive motor:100W*2 |
| Power supply mode: |
Lithium battery(48V)Brush head motor:150W |
| Battery life: |
Regular Edition4-5h/Long battery life version8hLanding speed:230-250r/min |
| Charging time: |
8hTravel speed:Maximum 40m/mim (±2m) with three-speed adjustment, can be reduced to 30 or 20m/mim |
| Cleaning Type: |
WashingWeight:30KG(No batteries included) |
| Working angle: |
≤15°Brush head weight:10.5KG |
| Cleaning width: |
1350mmBattery weight:8KG |
| Roller brush length: |
1350mmBody material:Aviation aluminum |
| Dimensions: |
1150*1450*350Bristle Material:Nylon |
| Operating temperature range: |
-20-50°CTrack material:Imported rubber |
| Remote Control | |
| Single battery specifications: |
3.6V6000mAhBattery life:≤30h |
| Charging time: |
6-8h |
Product description
1. Why choose the XYT X7?
- 1 robot ≈ 3MW daily cleaning capacity = 1 operator
- The wide brush head and tail water-spraying scraper provide enhanced cleaning efficiency. It also features intelligent features such as anti-drop protection, path planning, and deviation correction.
- Suitable for large, low-angle power plants and environments where standing is difficult.
2. Why trust the XYT X7 for installation?

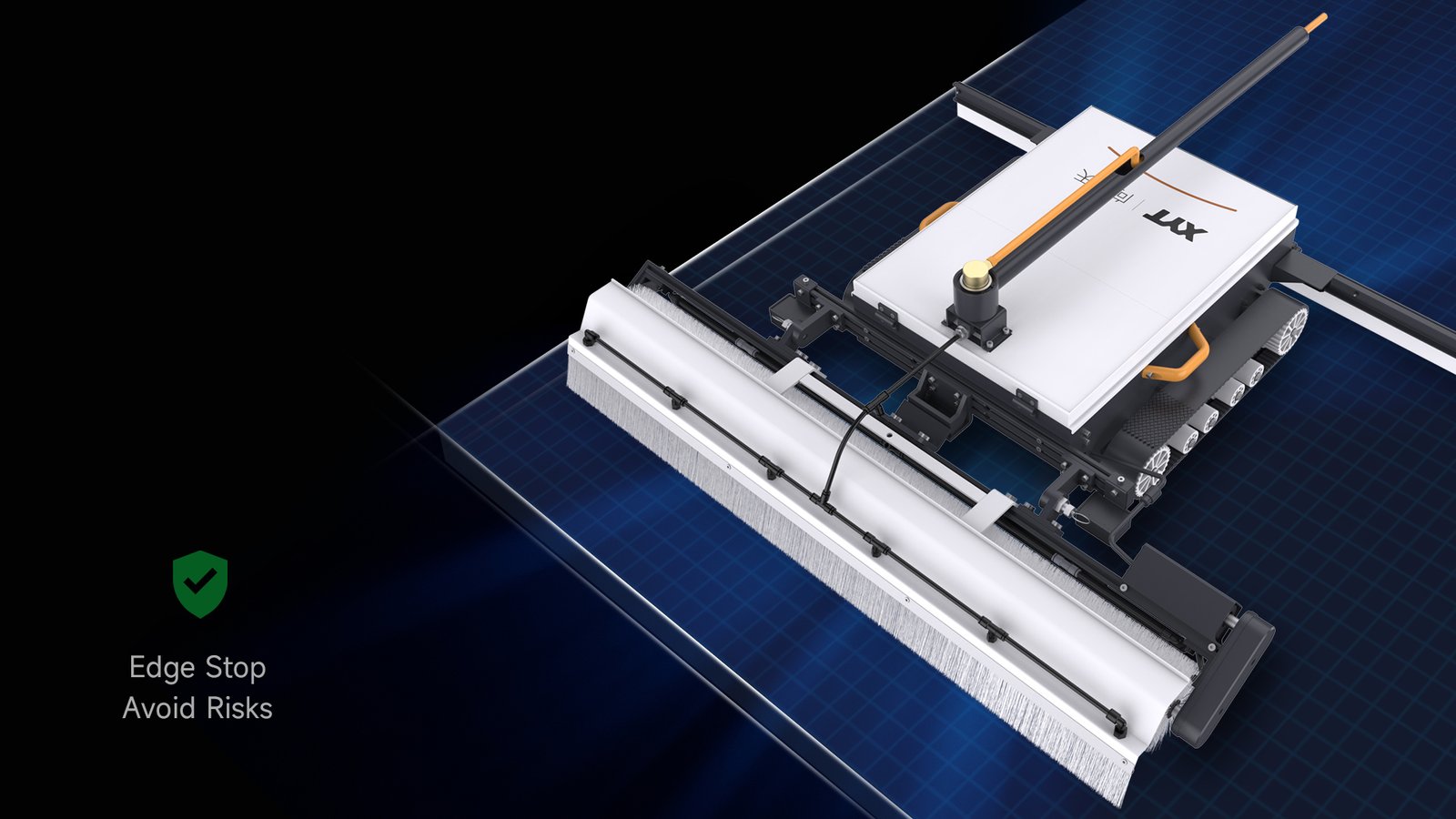

- Four high-precision anti-drop sensors, rigorously safety-certified
- Three speed settings (20/30/40 m/min) precisely tailored to varying pollution levels
- Tail-mounted water scraper system for zero wastewater residue
- Proprietary brushless motor with a 3,000-hour lifespan and 30% increased torque
- Modular lithium-ion battery pack (EVE Lithium Energy cells) supports 3 hours of continuous operation
3. Intelligent Operation and Maintenance System Improves Cleaning Efficiency

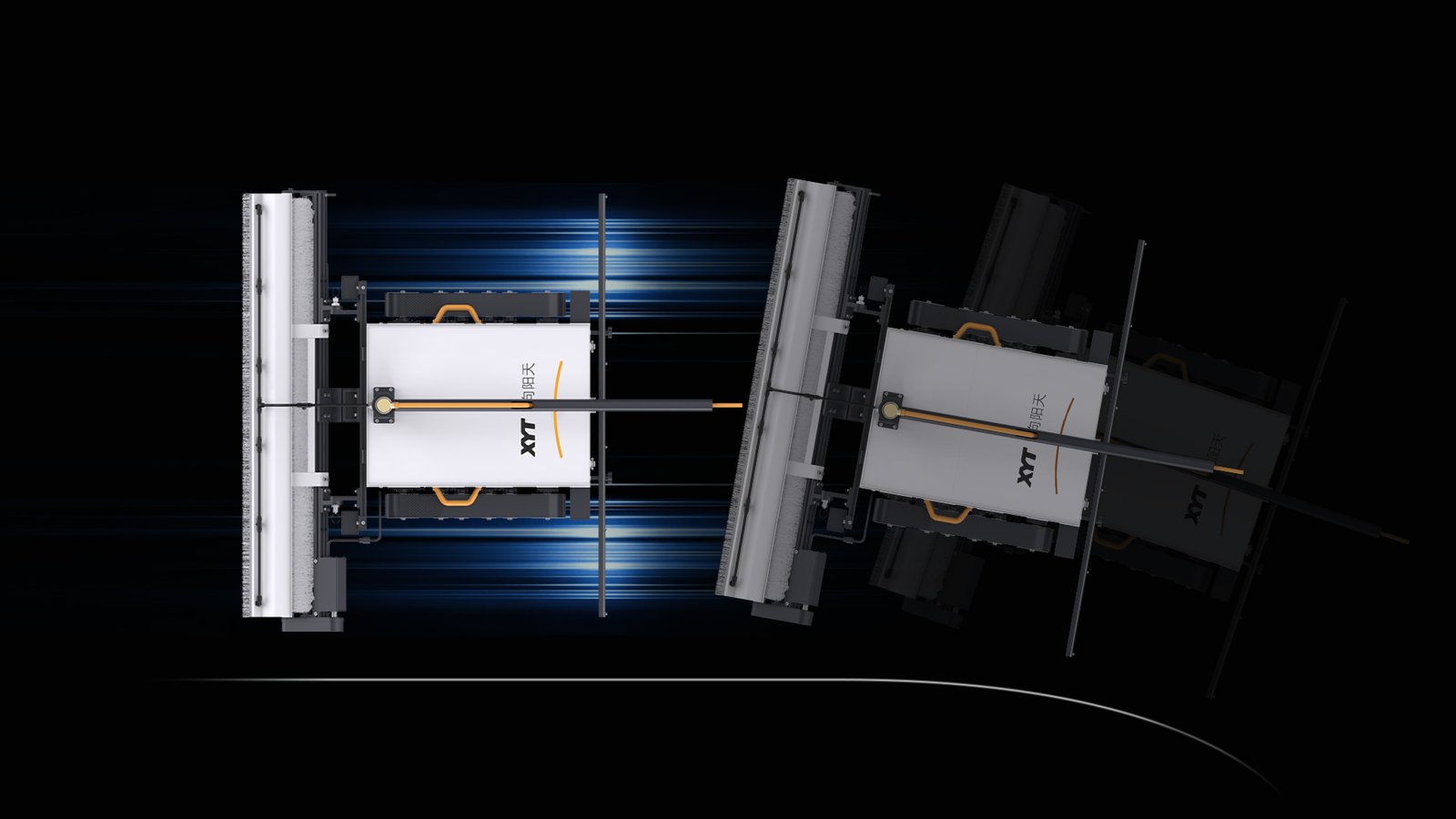

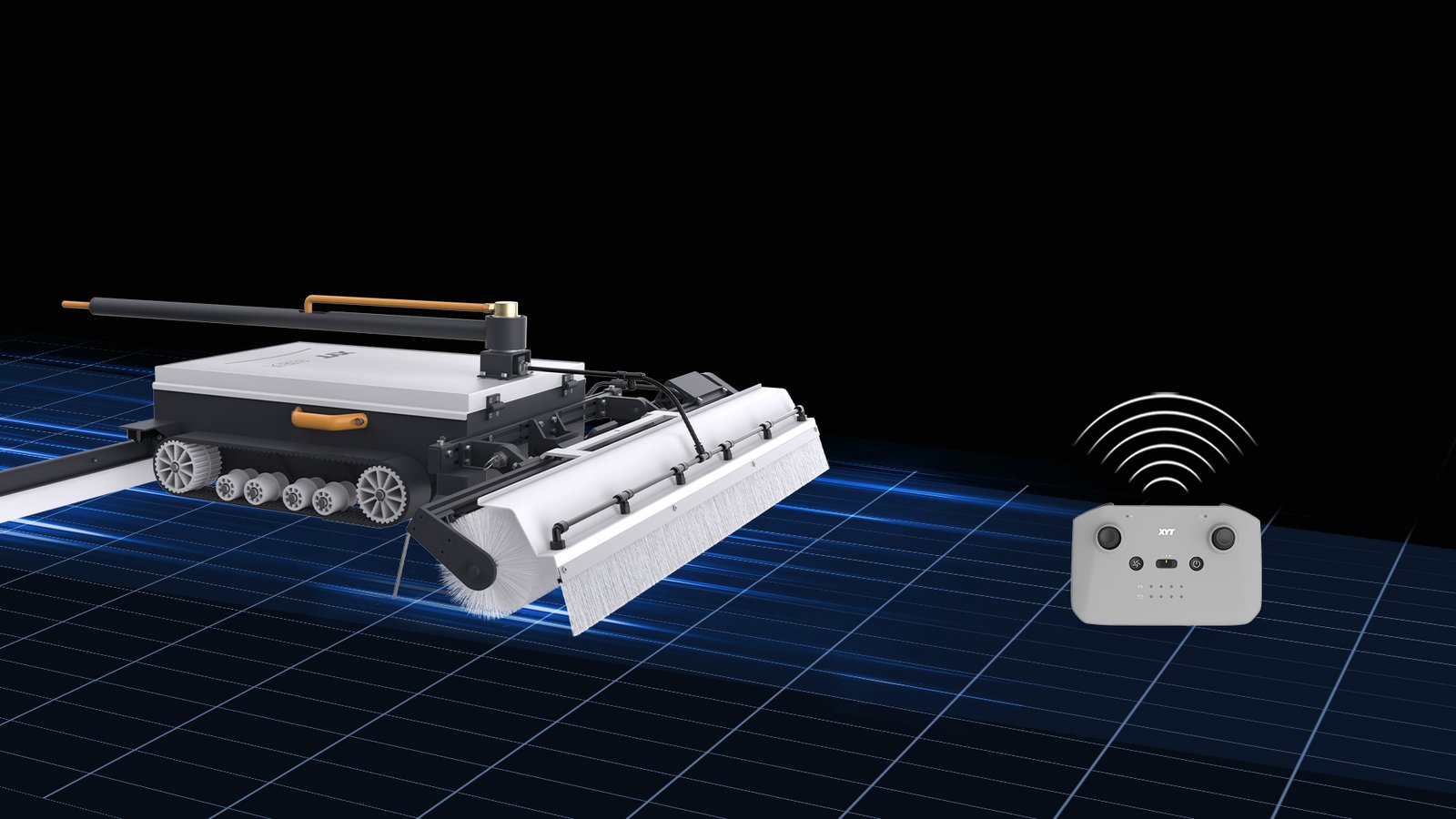

The robot is equipped with fully automatic path planning and cruise control, autonomously generating a zigzag cleaning route. Combined with automatic deviation correction technology, it instantly resets its route if it deviates, reducing the need for manual intervention. The remote control boasts an ultra-long 30-hour battery life and stable transmission up to 100 meters, maintaining zero-lag control even in complex electromagnetic environments.
4. What design features ensure the long-term reliability of the equipment?

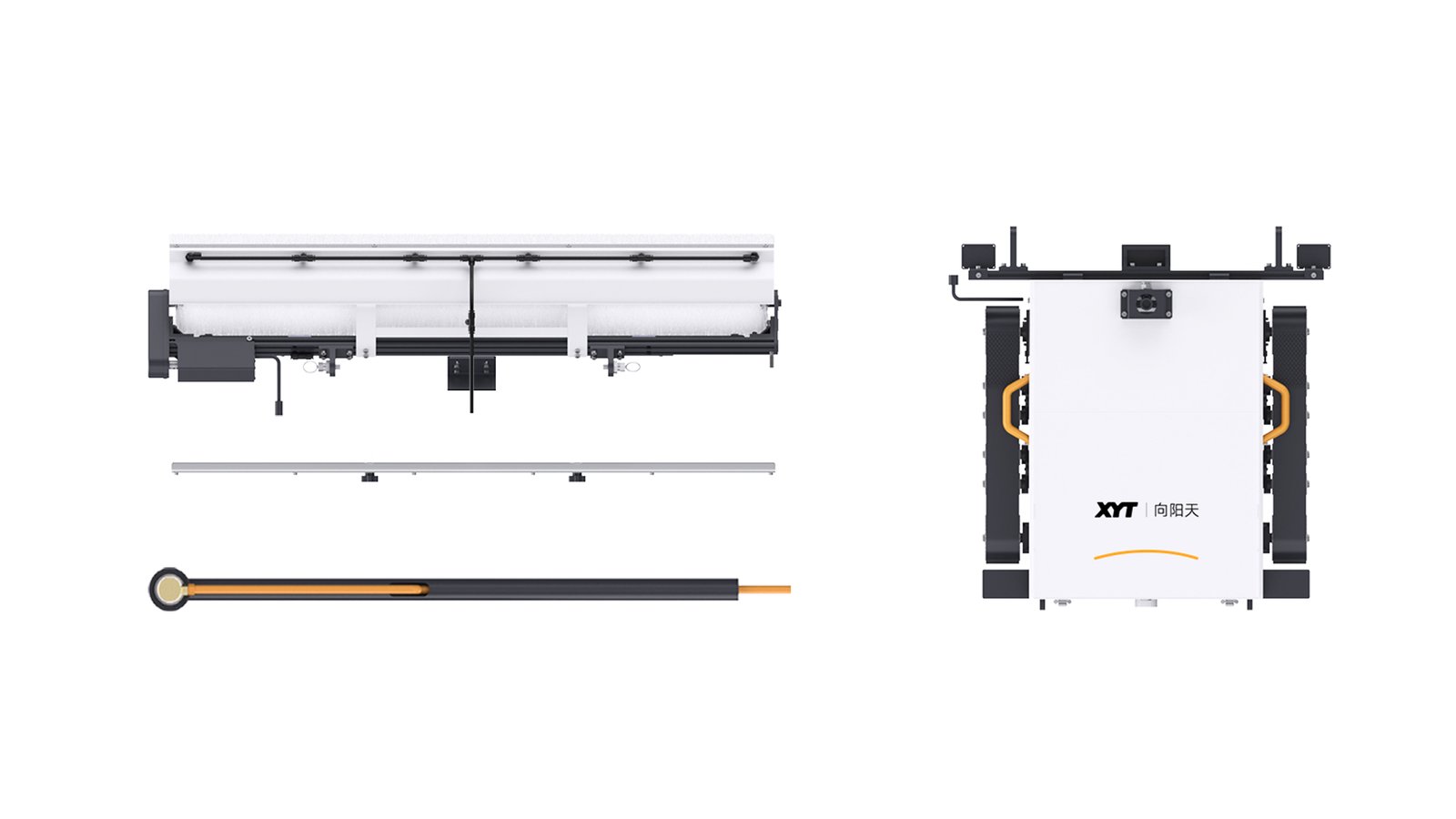

The entire machine utilizes a five-module design, with each module weighing ≤20kg and assembling in just two minutes. The brushless motor and linked brush head system reduce idling energy consumption and prevent excessive wear on the photovoltaic panels. The drive system and cleaning unit are independently packaged, reducing maintenance costs by 50%, making it suitable for high-frequency industrial operations.
